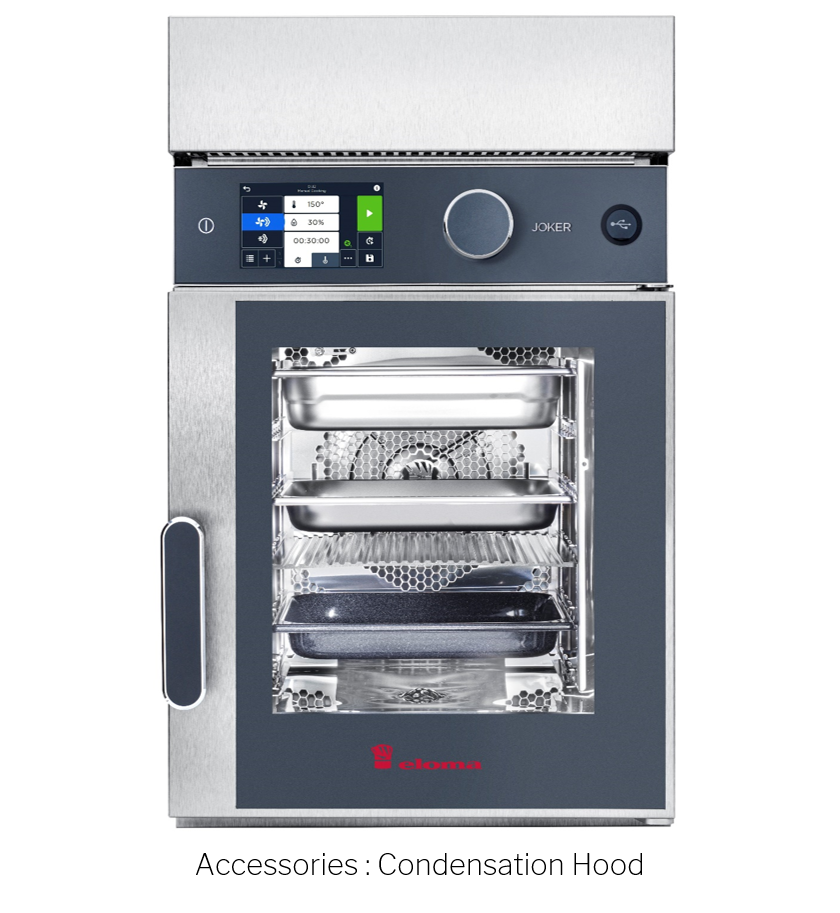

ELOMA JOKER ST 6-23

Features

MODULARITY Configuration options based on actual requirements.

CAPACITY Maximum use of space with minimum external dimensions, with a cooking chamber 44 cm wide and 40 cm high.

FLEXIBILITY Selectable control position, based on available space.

DESIGN Form follows function. Clean lines, clear touch screen, simple operation.


Technical data

Dimensions:

Width x depth x height                                  650 x 625 x 560

Weight                                                                  70 kg

Weight with packaging                                  86 kg

Number levels                                                   5+1 x GN 2/3

Distance between levels                              67 mm


Electric supply

Voltage                                                                 380V-415V/50Hz 3N PE*

Connection load                                               6.4 kW

Rated current                                                    8.9 A

Protection                                                           3 x 10 Amp*

Res. current circuit breaker                         10 Amp

Recommended cross section                    1.5 qmm.

*Residual-current circuit breaker: Type B, residual current device with 30 mA

*Remark: Supply voltage for Thailand used
